Event ID 5153: The Windows Process Activation Service (WAS) encountered an error attempting to look up the built in IIS_IUSRS group.

Today I was installing Exchange Server 2010 Enterprise on a Windows Server 2008 R2 Domain Controller. Although Microsoft recommends that you install Exchange 2010 on a member server if possible, the environment I was working was very small so the Exchange Server 2010 was installed on a Domain Controller. There was an Exchange Server 2007 already in the same forest.

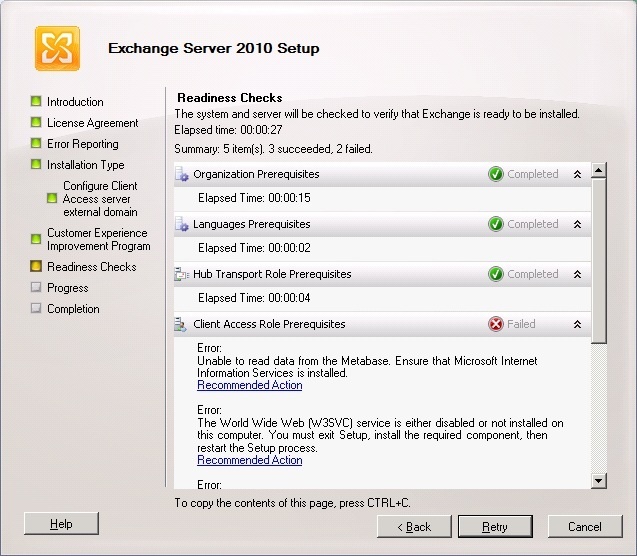

After I installed Exchange Server 2007 SP3 (at least SP2 was required in my scenario) to meet the prerequisites, I was unable to install Exchange Server 2010. During the installation I received the following error, indicating IIS was not installed on the Windows Server 2008 R2 server.

I installed IIS but still received the same error. The event viewer displayed the following warning:

Log Name:      System
Source:        Microsoft-Windows-WAS
Date:          7/10/2010 8:54:01 AM
Event ID:      5153
Task Category: None
Level:         Warning
Keywords:      Classic
User:          N/A
Computer: Exchange.SeattlePro.com

Description: The Windows Process Activation Service (WAS) encountered an error attempting to look up the built in IIS_IUSRS group.  There may be problems in viewing and setting security permissions with the IIS_IUSRS group.  This happens if the machine has been joined and promoted to be a Domain Controller in a legacy domain.  Please see the online help for more information and solutions to this problem.  The data field contains the error number.

Upon further investigation, I discovered that according to Microsoft KB article 946139, this is by design. Translation: This is a FEATURE, not a BUG.

Symptoms

You have a Windows Server 2008-based server that is running Internet Information Services (IIS) 7.0. You set the Windows Server 2008-based server as a domain controller of a Windows 2000-based domain or of a Windows Server 2003-based domain. In this scenario, you cannot resolve the built-in IIS accounts, such as the IIS_IUSRS group or the IUSR guest user account. You can see only the raw security identifier (SID) of the built-in IIS accounts.

Note: This problem does not occur if you set the Windows Server 2008-based server as a domain controller of a Windows Server 2008-based domain.

Reason

This problem occurs because the IIS 7.0 built-in accounts specification for Windows Server 2008 does not exist in earlier domains, such as Windows 2000-based domains and Windows Server 2003-based domains. When the IIS 7.0 server is set as a Windows 2000-based domain controller or a Windows Server 2003-based domain controller, the Windows Server 2008 accounts cannot be resolved.

Detailed Explanation

This TechNet article explains Event ID 5153 in more detail. Essentially, you have to remap the built-in IIS accounts. IIS 7.0 uses several built-in Windows Server 2008 accounts, including the IIS_IUSRS group and the IUSR guest user account. These replace the <MACHINE_NAME>_USR account that was created by IIS 6.0.

A problem occurs when a Windows Server 2008 computer that hosts IIS 7.0 becomes a domain controller (DC) of a non-Windows Server 2008 domain (that is, a DC of a Windows 2000 or Windows Server 2003 domain). When the DC promotion occurs, the new Windows Server 2008 built-in accounts are no longer available to IIS 7.0. Any Access Control List (ACL) that uses the built-in accounts will not be able to resolve to a friendly name, but will instead show their raw SID (Security Identifier) values.

To resolve this issue, run a script that will restore the mapping of SIDs to friendly names for the built-in accounts. The script must be run on the DC while it is connected to its Primary Domain Controller (PDC). This will reestablish access to the built-in accounts that IIS 7.0 requires.

Solution

To resolve this problem, you will need to run a script. To obtain the script, see the Knowledge Base article 946139, IIS7 built-in accounts become unavailable after Domain Controller promotion. Save the script as SamUpgradeTask.js.

Note: You must restart the server after you run this script.

Troubleshooting Tips

After you have taken all these steps you may still get the same error, at least I did, and I know others have been in the same boat. Try these additional steps.

1. Go to Server Manager/Web Server (IIS)/Add role services and check the box for IIS 6 Management Compatibility. If that doesn’t help then go to step 2.

2. Start the PowerShell with elevated privileges (Start, All Programs, Accessories, Windows PowerShell) and run the following scripts one-by-one. You must start the PowerShell with elevated privileges, i.e. Run as Administrator.

• Import-Module ServerManager
• Add-WindowsFeature NET-Framework,RSAT-ADDS,Web-Server,Web-Basic-Auth,Web-Windows-Auth,Web-Metabase,Web-Net-Ext,Web-Lgcy-Mgmt-Console,WAS-Process-Model,RSAT-Web-Server,Web-ISAPI-Ext,Web-Digest-Auth,Web-Dyn-Compression,NET-HTTP-Activation,RPC-Over-HTTP-Proxy -Restart
• Set-Service NetTcpPortSharing -StartupType Automatic
